Product Overview

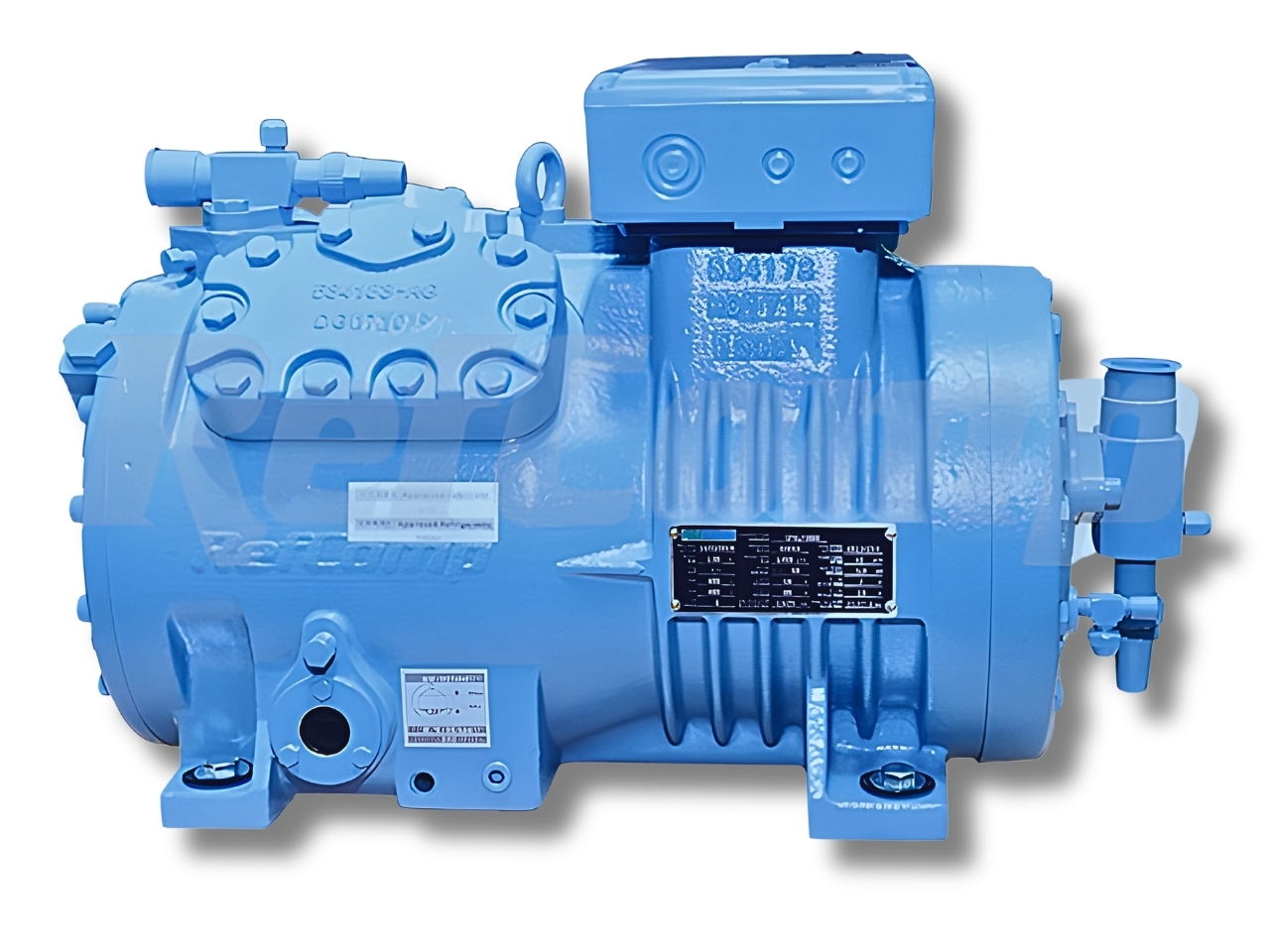

RefComp SP4HF-100E

Name: RefComp SP4HF-100E
Brand: RefComp
SKU: SP4HF-100E
Availability: InStock

SP4*F Series

Model: SP4HF-100E

Compressor Type: Piston

Cylinders: 4

Product Model

Details

Motor Size

HP: 10

Kw: 7.5

Displacement (m3/h )

50Hz: 35

60Hz: 42

Electrical Charecteristics

Standard Electrical Supply: Part Wind (PW): 400V/3/50Hz ~ 460V/3/60Hz

Max. Starting Current (A): (PW/DOL) 71/110

Max Running Current (A): 24

Service Valves

Discharge (mm) / Inches: 22mm (7/8")

Suction (mm) / Inches: 28mm (1-1/8")

Additional Info

Cylinders: 4

Capacity Regulation: 100% / 50%

Lubrication

Lubrication: Pump

Standard Oil: POE32

Oil charge (Litres): 2.6L

Competitors

Comparison

Bitzer

4VE-10Y

4VC10.2

4V10.2

Bock

Frascold

Q7-36.1Y

Dorin

Copeland
