Product Overview

RefComp SP4HN-200E

Name: RefComp SP4HN-200E
Brand: RefComp
SKU: SP4HN-200E
Availability: InStock

SP4*N Series

Model: SP4HN-200E

Compressor Type: Piston

Cylinders: 4

Product Model

Details

Motor Size

HP: 20

Kw: 15

Displacement (m3/h )

50Hz: 56

60Hz: 67.2

Electrical Charecteristics

Standard Electrical Supply: Part Wind (PW): 400V/3/50Hz ~ 460V/3/60Hz

Max. Starting Current (A): (PW/DOL) 106/168

Max Running Current (A): 40

Service Valves

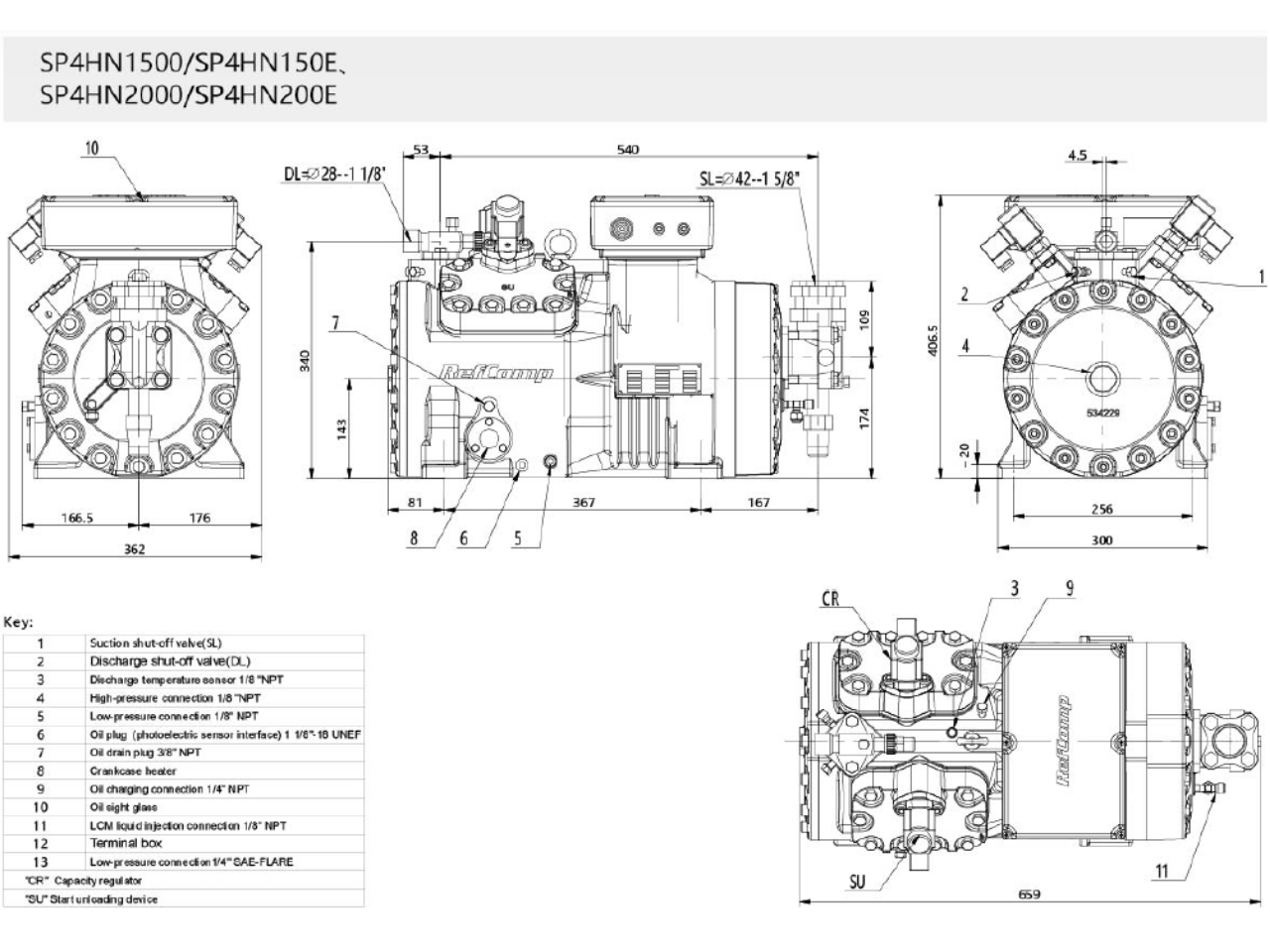

Discharge (mm) / Inches: 28mm (1-1/8")

Suction (mm) / Inches: 42mm (1-5/8")

Additional Info

Cylinders: 4

Capacity Regulation: 100% / 50%

Lubrication

Lubrication: Pump

Standard Oil: POE32

Oil charge (Litres): 2.6L

Competitors

Comparison

Bitzer

4NES-20Y

4NCS20.2

4N20.2

Bock

HGX44e-665-4S

Frascold

S20.56Y

Dorin

H2001CC

Copeland

D4SA-200X

D4DA-200X
