Product Overview

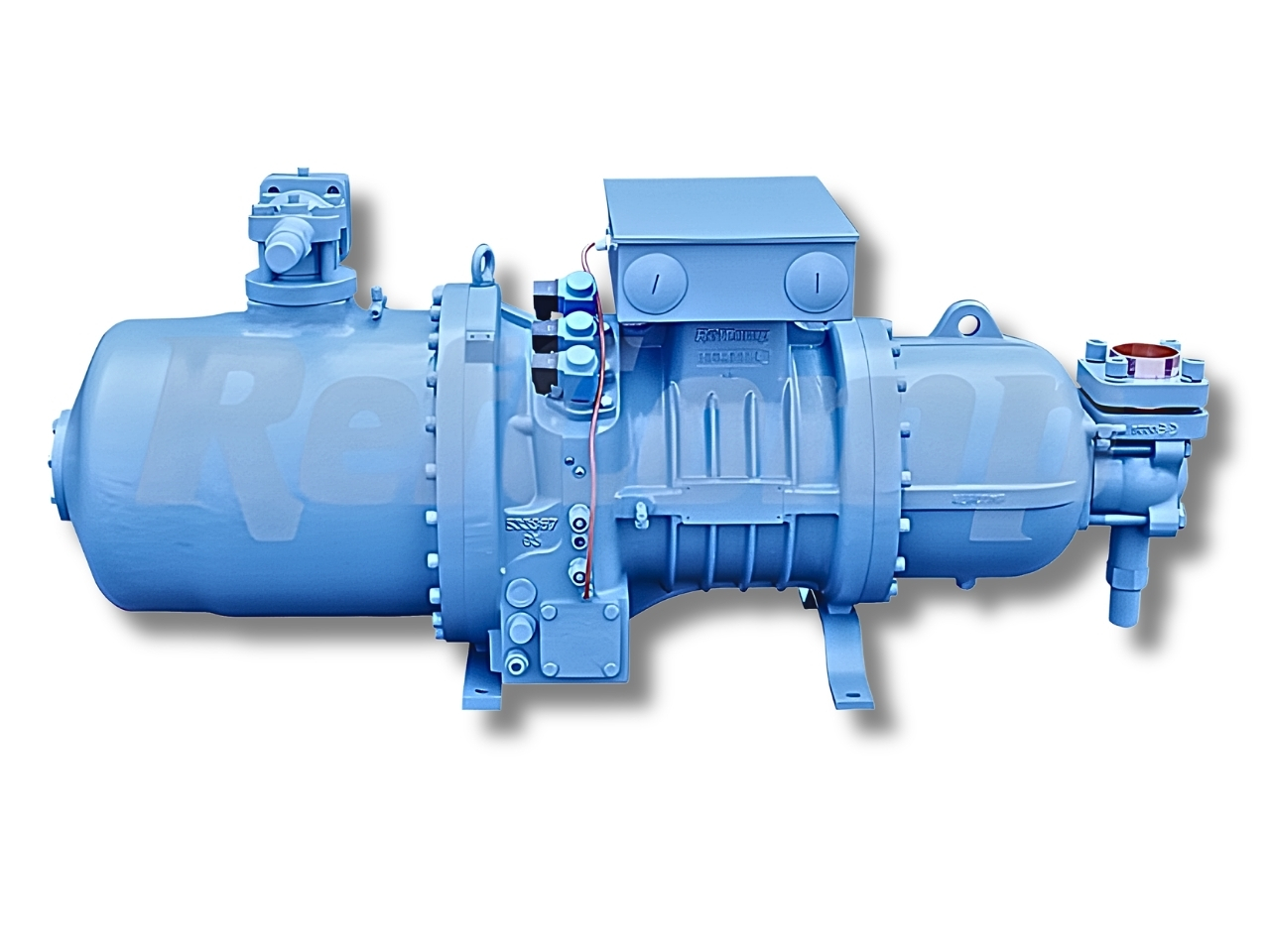

RefComp SRC-S-305

Name: RefComp SRC-S-305
Brand: RefComp
SKU: SRC-S-305
Availability: InStock

SRC-S Compact Screw Series

Model: SRC-S-305

Compressor Type: Screw

Cylinders:

Product Model

Details

Motor Size

HP: 100

Kw: 75

Displacement (m3/h )

50Hz: 341

60Hz: 409

Electrical Charecteristics

Standard Electrical Supply: Star/Delta: 400V/3/50Hz ~ 460V/3/60Hz

Max. Starting Current (A): (Y/Δ) 318/953

Max Running Current (A): 196

Service Valves

Discharge (mm) / Inches: 54mm (2-1/8")

Suction (mm) / Inches: 80mm (3-1/8")

Additional Info

Capacity Regulation: 25/50/75/100% (4 Step) or 25~100% Stepless

Lubrication

Lubrication: Differential

Standard Oil: POE170

Oil charge (Litres): 10L

Competitors

Comparison

Bitzer

CSH8563-125

Bock

Frascold

Dorin

Copeland
