Product Overview

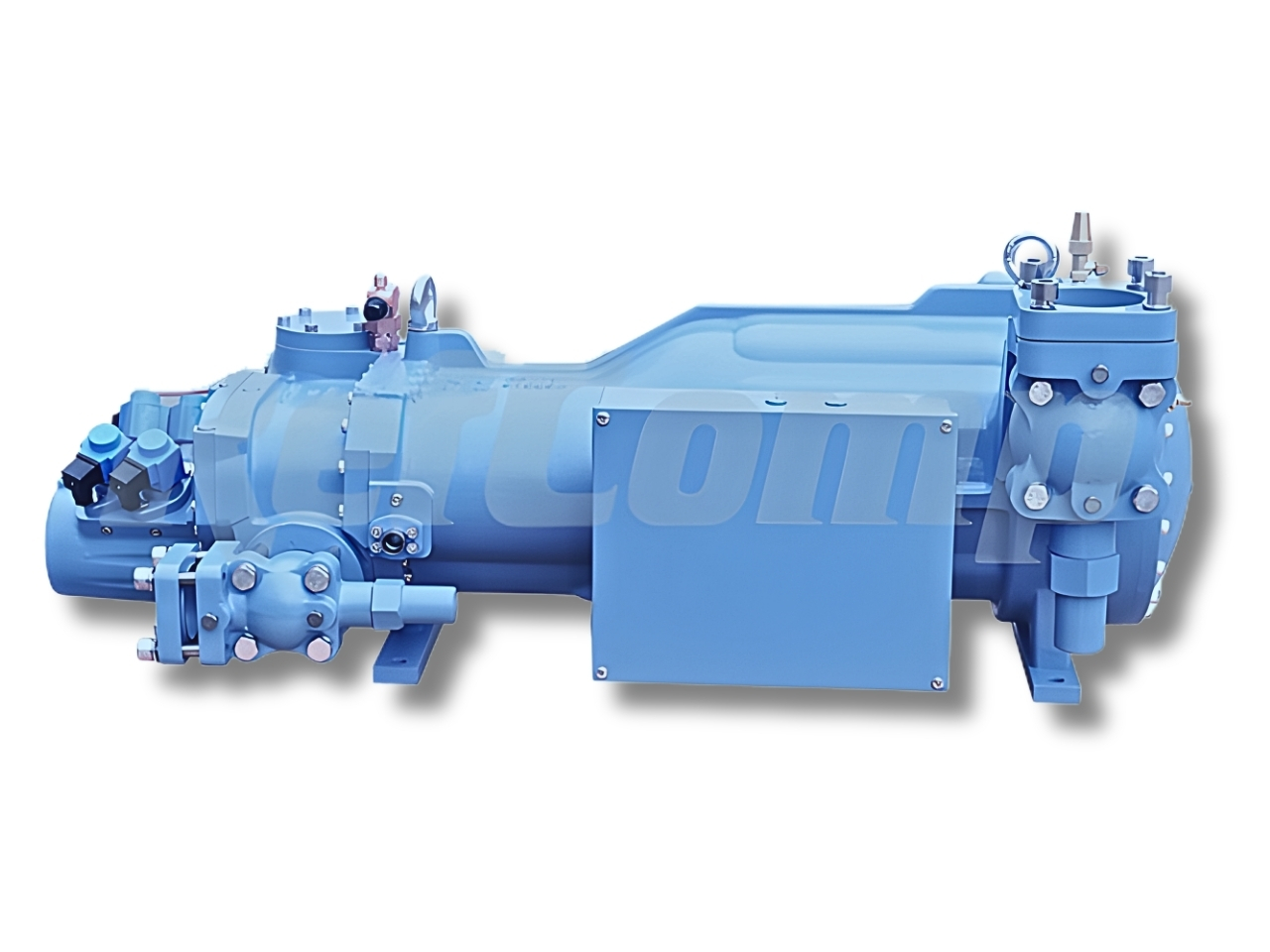

RefComp SW5L-100

Name: RefComp SW5L-100
Brand: RefComp
SKU: SW5L-100
Availability: InStock

SW5 Screw Series

Model: SW5L-100

Compressor Type: Screw

Cylinders:

Product Model

Details

Motor Size

HP: 100

Kw: 75

Displacement (m3/h )

50Hz: 340

60Hz: 408

Electrical Charecteristics

Standard Electrical Supply: Star/Delta: 400V/3/50Hz ~ 460V/3/60Hz

Max. Starting Current (A): (Y/Δ) 295/885

Max Running Current (A): 154

Service Valves

Discharge (mm) / Inches: 67mm (2-5/8")

Suction (mm) / Inches: 92.5mm (3-5/8")

Additional Info

Capacity Regulation: 25/50/75/100% (4 Step) or 25~100% Stepless

Lubrication

Lubrication: Differential
