Product Overview

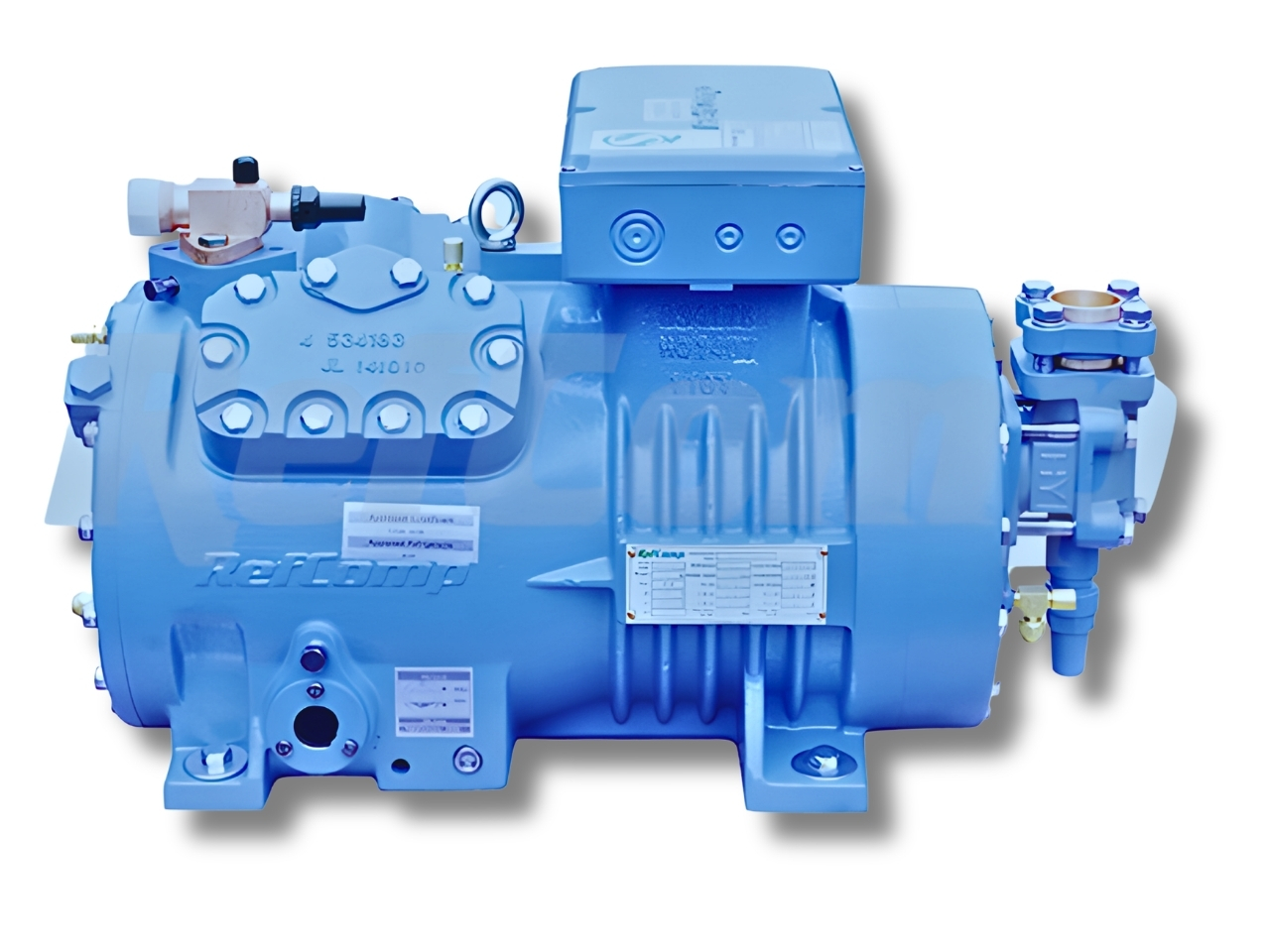

RefComp SP4HF-150E

Name: RefComp SP4HF-150E
Brand: RefComp
SKU: SP4HF-150E
Availability: InStock

SP4*F Series

Model: SP4HF-150E

Compressor Type: Piston

Cylinders: 4

Product Model

Details

Motor Size

HP: 15

Kw: 10

Displacement (m3/h )

50Hz: 49

60Hz: 58.8

Electrical Charecteristics

Standard Electrical Supply: Part Wind (PW): 400V/3/50Hz ~ 460V/3/60Hz

Max. Starting Current (A): (PW/DOL) 86/144

Max Running Current (A): 33

Service Valves

Discharge (mm) / Inches: 28mm (1-1/8")

Suction (mm) / Inches: 42mm (1-5/8")

Additional Info

Cylinders: 4

Capacity Regulation: 100% / 50%

Lubrication

Lubrication: Pump

Standard Oil: POE32

Oil charge (Litres): 2.6L

Competitors

Comparison

Bitzer

4PE-15Y

4PC15.2

4P15.2

Bock

HGX44e-565-4S

Frascold

S15-52Y

Dorin

H1501CC

Copeland

D3SS-150X

D3DS-150X
