Product Overview

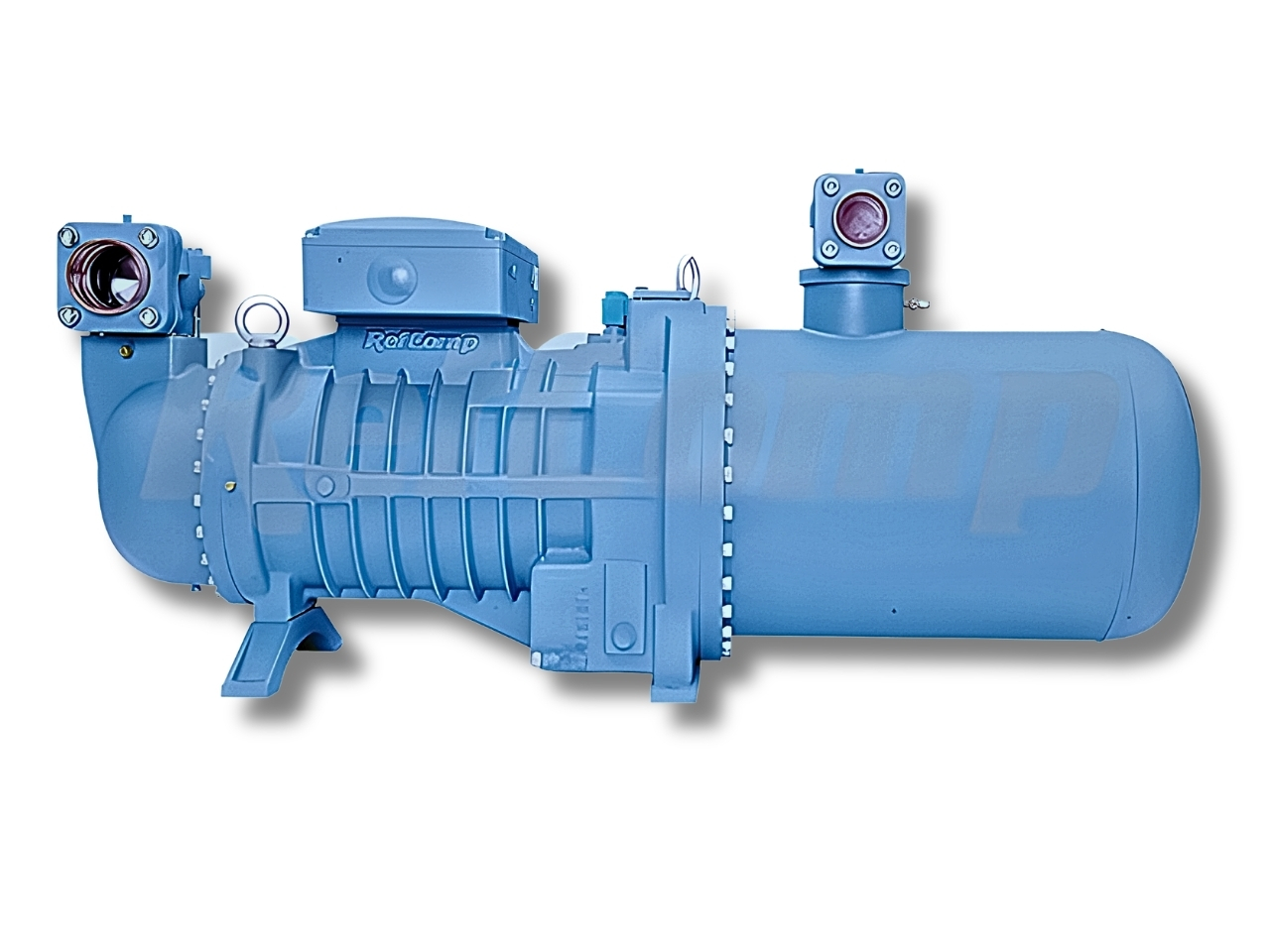

RefComp SRC-S-503

Name: RefComp SRC-S-503
Brand: RefComp
SKU: SRC-S-503
Availability: InStock

SRC-S Compact Screw Series

Model: SRC-S-503

Compressor Type: Screw

Cylinders:

Product Model

Details

Motor Size

HP: 180

Kw: 135

Displacement (m3/h )

50Hz: 562

60Hz: 674

Electrical Charecteristics

Standard Electrical Supply: Star/Delta: 400V/3/50Hz ~ 460V/3/60Hz

Max. Starting Current (A): (Y/Δ) 543/1465

Max Running Current (A): 300

Service Valves

Discharge (mm) / Inches: 80mm (3-1/8")

Suction (mm) / Inches: 105.5mm (4-1/8")

Additional Info

Capacity Regulation: 25/50/75/100% (4 Step) or 25~100% Stepless

Lubrication

Lubrication: Differential

Standard Oil: POE170

Oil charge (Litres): 19L

Competitors

Comparison

Bitzer

Bock

Frascold

Dorin

Copeland
