Product Overview

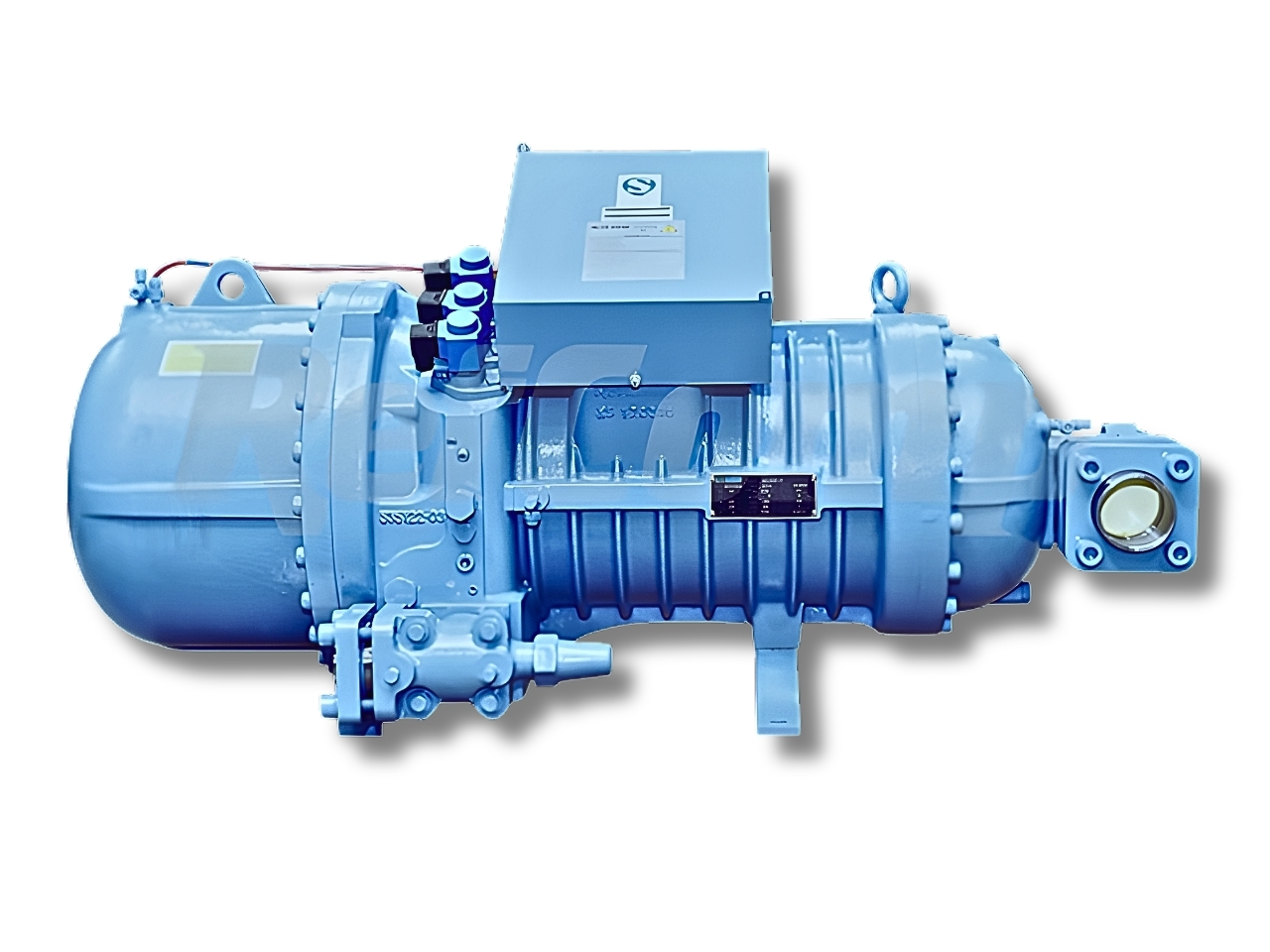

RefComp SW3L-9500

Name: RefComp SW3L-9500
Brand: RefComp
SKU: SW3L-9500
Availability: InStock

SW3 Screw Series

Model: SW3L-9500

Compressor Type: Screw

Cylinders:

Product Model

Details

Motor Size

HP: 95

Kw: 71

Displacement (m3/h )

50Hz: 318

60Hz: 382

Electrical Charecteristics

Standard Electrical Supply: Star/Delta: 400V/3/50Hz ~ 460V/3/60Hz

Max. Starting Current (A): (Y/Δ) 318/953

Max Running Current (A): 154

Service Valves

Discharge (mm) / Inches: 54mm (2-1/8")

Suction (mm) / Inches: 80mm (3-1/8")

Additional Info

Capacity Regulation: 25/50/75/100% (4 Step) or 25~100% Stepless

Lubrication

Lubrication: Differential

Competitors

Comparison

Bitzer

Bock

Frascold

Dorin

Copeland
